Controller configurable software

  • Single/multiple zone HVAC (configurable for all of the following)
    • Fan coil unit
    • Roof top unit
    • Heat pump unit
    • Air handler unit - single zone
    • Air handler unit - VAV zones
    • Air handler unit - VVT zones
      • Version 1: economical configuration with the basic feature-set
      • Version 2: feature-rich configuration with the complete feature-set
  • Zone lighting (indoor & outdoor)
  • Irrigation
  • Unit ventilator (fans)
  • Energy-shedding
  • Single/multiple air compressor stations with zone(s)
  • Heating hot water (central plant, boilers, & pumps)
  • Statistical calculations

Rhea network appliance:

  • Intel 1.8 GHz Dual Core processor (upgradeable to Intel I5 or I7)
  • 4Gb RAM
  • Cooling: fanless, passive
  • 10/100 NIC
  • 50Gb Solid State Drive for trend, alarm, and application storage
  • I/O Ports: 4 USB & 1 HDMI video
  • Windows 7 embedded operating system
  • SQL Server 2012- Database Server
  • Inetsupervisor HMI
  • Operating temperature: 32-100°F
  • Operating humidty: 5-95% (non-condensing)

    InetSupervisor HMI software:

  • Automation communication protocols:
    • Lonworks LNS
    • Bacnet IP
    • Modbus
  • Trending (up to 6,000 points for 10 years)
    • InetAnalytics module included
  • Lonworks LNS
  • Alarms - emails & text messages
  • Scheduling with global holidays & one-time exceptions
  • Graphical user interface supports most standard
    web technologies (i.e. - Flash, .NET, ASPX, Java, XML, etc...)
  • Enterprise architecture capability - 1 website for unlimited installations

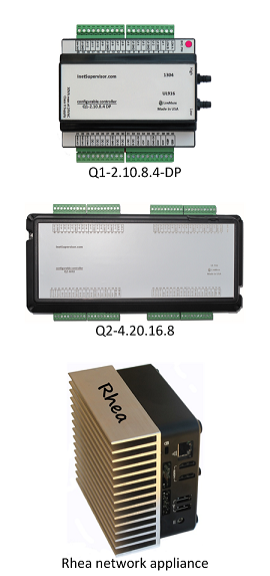

Controller Specifications

Universal Inputs

(resistive, VDC, & milliamp)

Digital Outputs

(24 VAC)

Analog Outputs

(0-10 VDC)

20 VDC

Power Supply

Model Resistive-only inputs
Q1-2.0.2.0 2 0 2 0 No
Q1-2.2.4.0 2 2 4 0 Yes
Q1-2.4.5.2 2 4 5 2 Yes
Q1-2.10.8.4 2 10 8 4 Yes
Q2-4.20.16.8 4 20 16 8 Yes
  • Powered by 24 VAC, 50/60 hz, Class II
  • Optional built-in Modbus gateway with RJ45 connection (up to 50 Modbus points)
  • Processor: FT-5000, 8 bits, 80 MHz
  • Memory: 48K application memory
  • Transceiver: FTT-10; 78 kbps free topology, polarity free
  • UL916 Energy Management Equipment standard CSA C22.2 #205 Issue 1983/06/01 (R2009) Signal Equipment standard
  • Power consumption: typical-6 VA (plus peripherals), maximum - 30 VA
  • Fuse: 1.85A auto-resetable
  • Operating temperature: 32-158°F
  • Operating humidity: 0-90%
